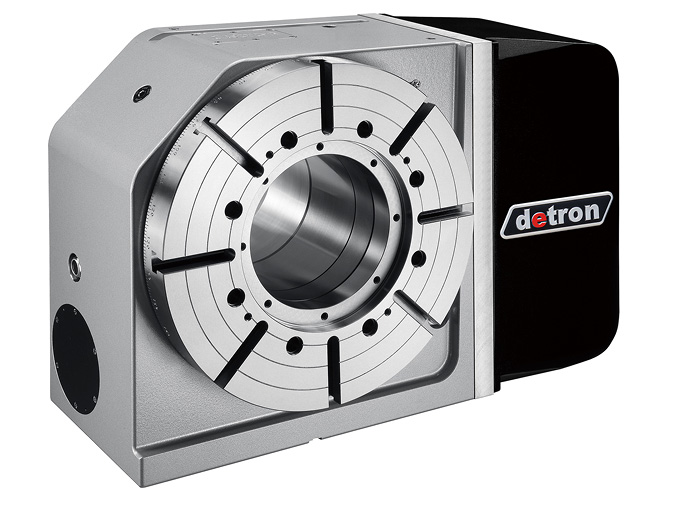

CNC Rotary Table
ø400
GXA-400H
Worktable diameter Ø255, Ø320, Ø400.
Big spindle bore allow the more complex parts clamping and fixture.
Ultra high clamping force by drum brake system.
Consolidated spindle with radial-Axial bearing built-in.
Full gear depth transmitted by dual lead worm drive, resulting in higher efficiency and lower backlash.
- SPECIFICATIONS
Specifications
| MODEL | Unit | GXA-400H | |
|---|---|---|---|
| Worktable Diameter | mm / inch | Ø400 / Ø15.75 | |
| Center Bore Diameter | mm / inch | Ø220H7 / Ø8.66H7 | |

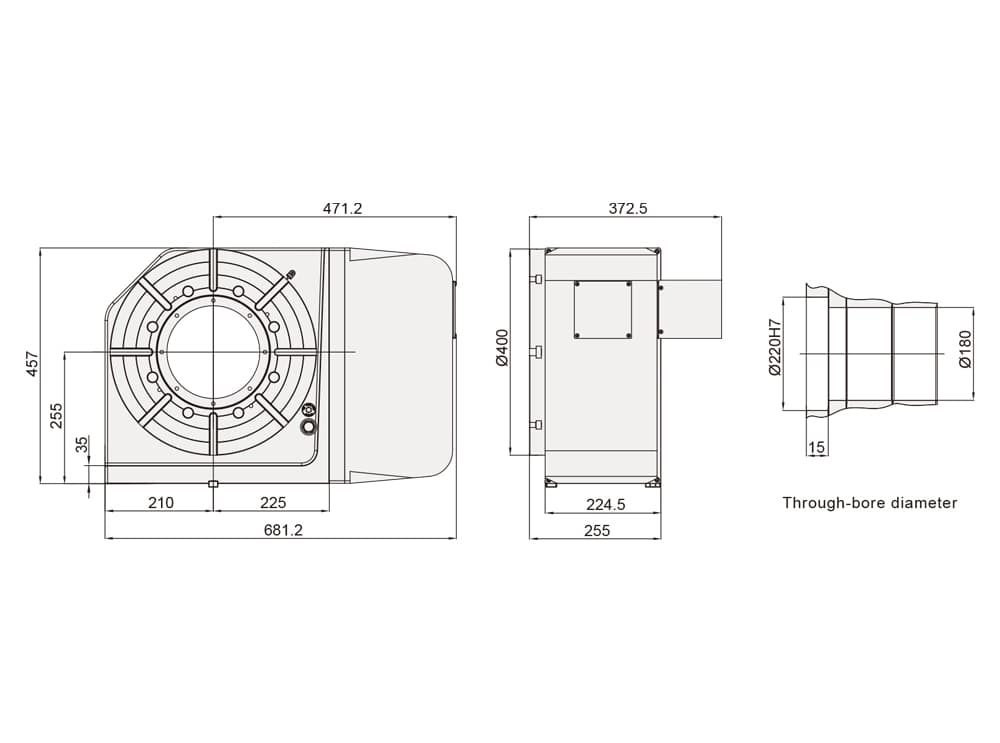

| Through-bore Diameter | mm / inch | Ø180 / Ø7.09 | |
| Height of Table (Horizontal) | mm / inch | 255 / 10.04 | |
| Height of Center (Vertical) | mm / inch | 255 / 10.04 | |
| Width of T-slot | mm / inch | 14H7 / 0.55H7 | |
| Width of Guide Block | mm / inch | 18 / 0.71 | |
| Clamping Method / Pressure | MPa / psi | Hydraulic | |
| 5 / 725 | |||
| Clamping Torque | N.m / ft. lbs. | 3000 / 2211 | |
| Servo Motor Spec | Refer to Page 77 | ||
| Transmission Ratio | 1 / 144 | ||
| Max. Table Speed / At Specified Servo Motor Speed | min-1 | 11.1 / 1600 | |
| Standard Loading Inertia* | (W.D2/8) | kg.m2 | 10.2 |
| Maximum Loading Inertia* | (W.D2/8) | kg.m2 | 40 |
| Resolution | deg. | 0.001 | |
| Indexing Accuracy | sec. | 15 | |
| Repeatability (ISO 230-2 / JIS B6192) | sec. | 6 | |
| Repeatability (JIS B6330) | sec. | 4 | |
| Net Weight (Servo Motor Excluded) | kg / lb | 253 / 556.6 | |
| Allowable Loading Capacity | Vertical | kg / lb | 250 / 550 |
| Horizontal | kg / lb | 500 / 1100 | |
| Rotary Tailstock Applied | kg / lb | 500 / 1100 | |
|
FxL When Table Clamped |
 |
N / lbs. | 38000 / 8527.20 |
 |
N.m / ft. lbs. | 5400 / 3979.8 | |
 |
N.m / ft. lbs. | 3000 / 2211 | |
| Allowable Cutting Torque |  |
N.m / ft. lbs. | 1700 / 1252.9 |
| Allowable Max. Rotary Joint Quantity | 6 | ||
Note:
1. Allowable cutting torque at table speed of 1 min-1.
2. Standard loading inertia* is allowed in max table speed. Contact detron for the necessary adjustment of speed and others when maximum loading inertia* is required.
3. FxL When table clamped is a reference data, the users should consider proper safety factor or contact detron for details.
