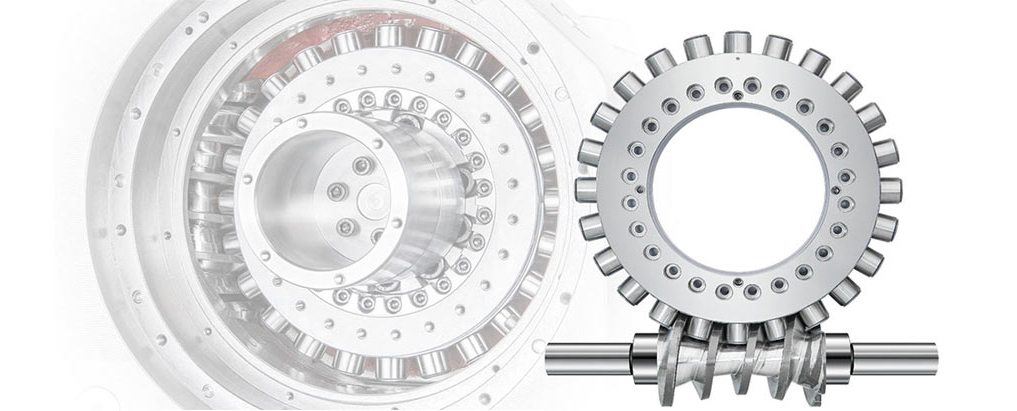

Roller Gear Cam Drive

detron's Zero-Backlash Roller Gear Cam Drive provides high rigidity, smooth rotation, and precise positioning. Its dual lead cam shaft design eliminates backlash and ensures stable performance for high-accuracy machining.

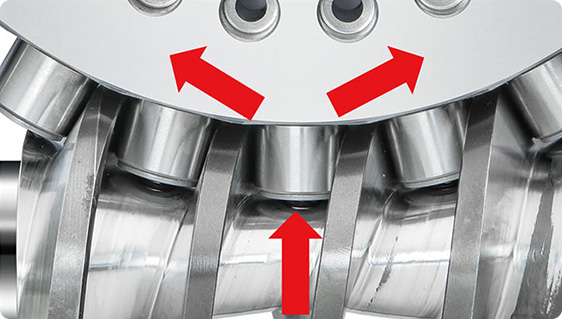

Dual Lead Cam Shaft Mechanism

Preload adjustment can completely eliminate the engagement of roller and cam shaft to reach zero backlash and to ensure at least 4 rollers contacting cam shaft during rotation for high rigidity performance.

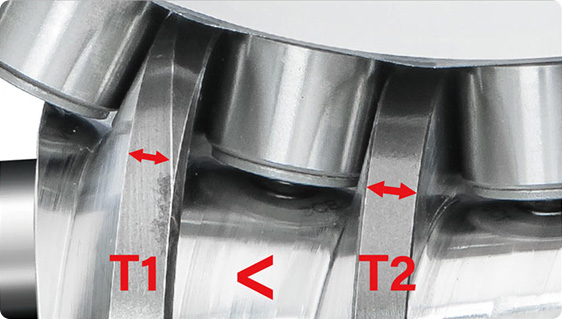

Dual Lead cam shaft design (T1 < T2) ensures the meshing performance between rollers and the cam shaft, which significantly reduces vibration and improves surface processing accuracy.

Reliable Clamping Force

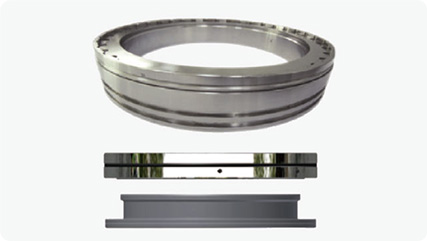

Hydraulic Model Special design of drum brake system.

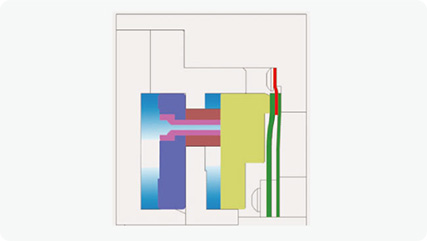

Pneumatic Model exclusive patented dual pistons design.

High Rigidity Consolidated Spindle

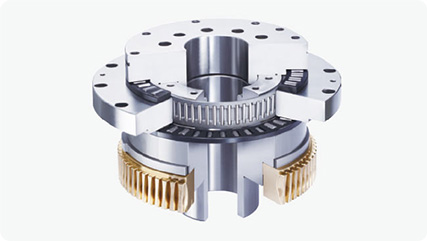

YRT bearing integrated in consolidated spindle with least separate elements & premium rigidity.

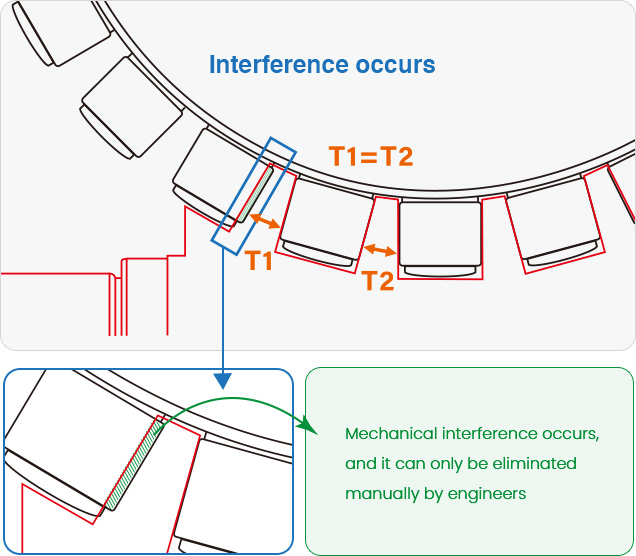

Conventional Cam Shaft Design (T1=T2):

Conventional single-lead design relies heavily on engineers' assembling experiences and skills, this couses longer production time and unstable quality of processing accuracy and vibration issue.

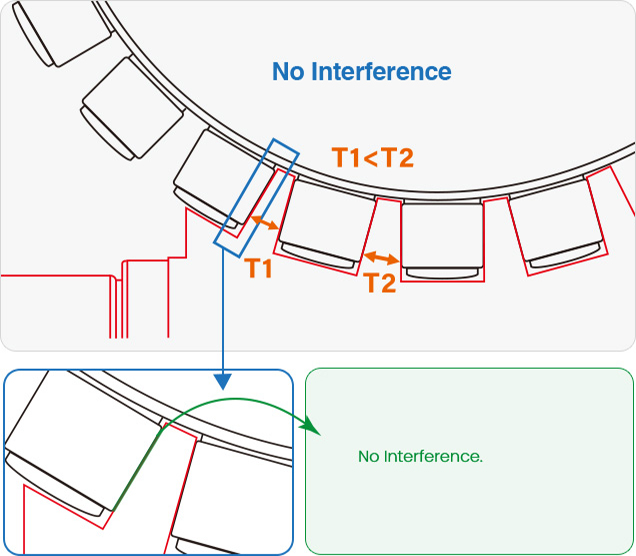

detron Own Dual Lead Cam Shaft Design (T1 < T2):

Through detron owned software, the preload value between the rollers and the cam shaft can be set and adjusted. According to the software settings and calculation, the optimal cam shaft tooth flank thinckness can be accurately processed.

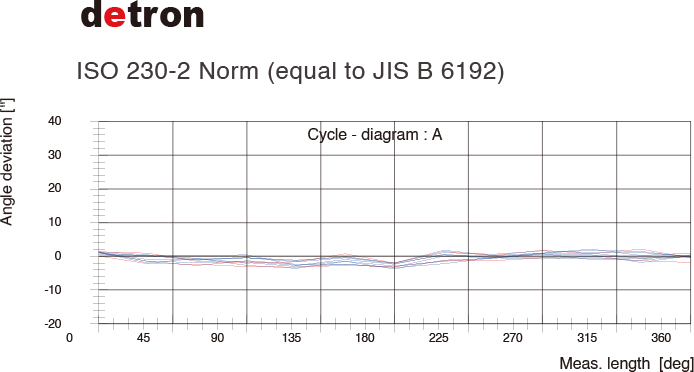

Strict Insoection Norm

Accuracy Inspection upon ISO 230-2 international norm is operated with 5 continuous runs in clockwise and counterclockwise test.
