Auto Pallet Changer

detron Automatic Pallet Changer (APC) systems are engineered to maximize the operational efficiency of machining centers. By delivering rapid, precise, and reliable A/B pallet exchanges, our APC solutions drastically reduce non-cutting loading time, helping manufacturers achieve continuous processing and higher spindle utilization.

Designed for seamless integration, Detron APC units are mounted directly to the machine base—saving valuable shop floor space while accommodating various machine configurations:

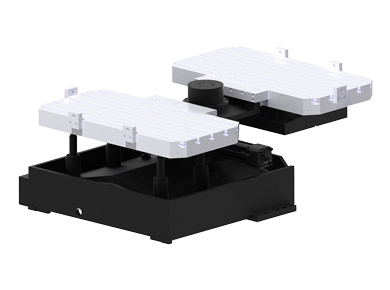

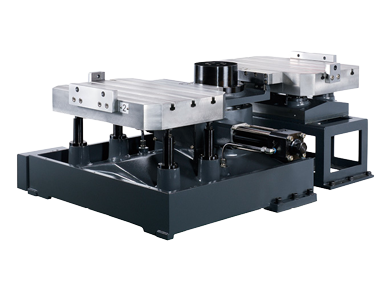

• CVR Series (Hydraulic Driven): Available in pallet sizes from 660×500 mm to 1000×500 mm, with a payload capacity up to 300 kg per side. Utilizing a 180° hydraulic exchange and a high-precision taper positioning mechanism, it guarantees exceptional repeatability of ±0.005 mm.

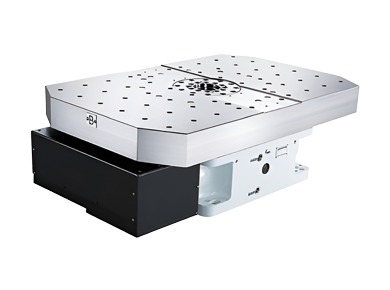

• SVC Series (Roller Cam Driven): Tailored for traveling column machining centers. Powered by a zero-backlash, wear-free roller cam mechanism, it achieves ultra-fast A/B pallet exchange in just 3.5 seconds. Absolute encoder positioning replaces conventional sensors for superior accuracy and stability.
