Encoder

Guidance to Select Rotary Table

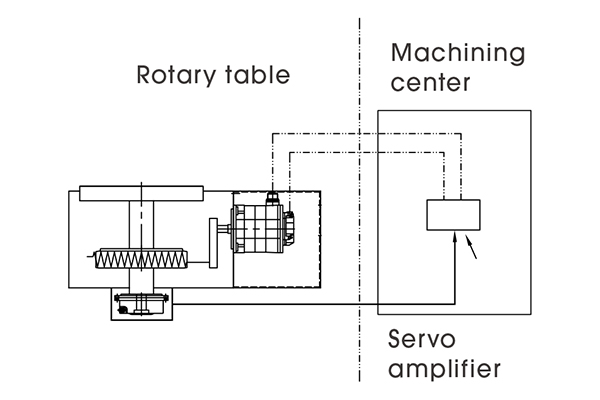

SCHEMATIC DIAGRAM OF ROTARY TABLE AND CNC MACHINE

Feature

• Allows for simultaneous control with X, Y, Z-axis of machine and ARC machining.
• Programs can be directly edited on the control screen of the machine.

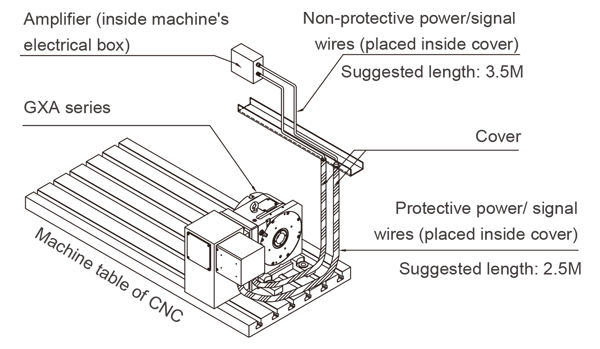

• Suggested length 2.5M with protective pipe for outer power / signal cable, from motor cover to machine guarding. (for X travel 500-1300mm machines)
• Suggested length 3.5M without protective pipe for power / signal cable, from machine guarding to amplifier.

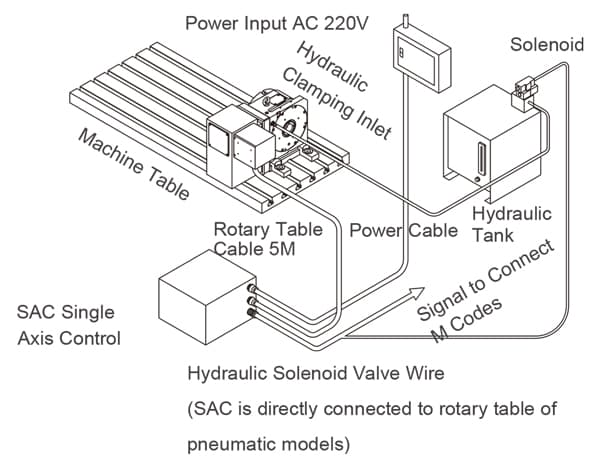

SCHEMATIC DIAGRAM OF ROTARY TABLE AND SINGLE AXIS CONTROLLER

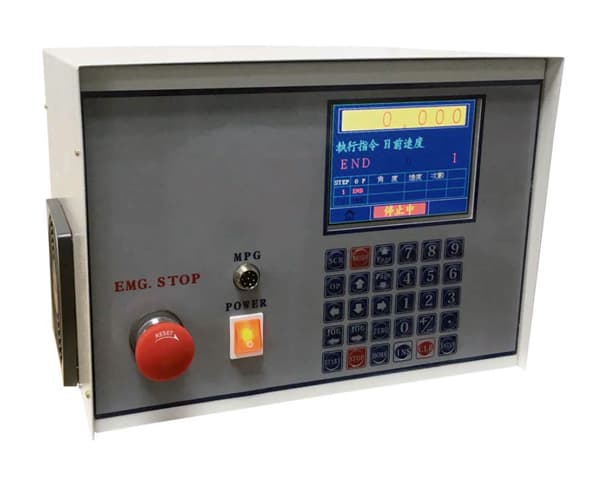

SAC III Series-Single Axis Control

Feature

• For machine NC without 4th axis function, SAC III provide signals to allow indexing application (no simultaneous function available).
• Programs of rotary table can be directly input through SAC III and allow machine NC M code command.
• Compatible with any brand of NC control.

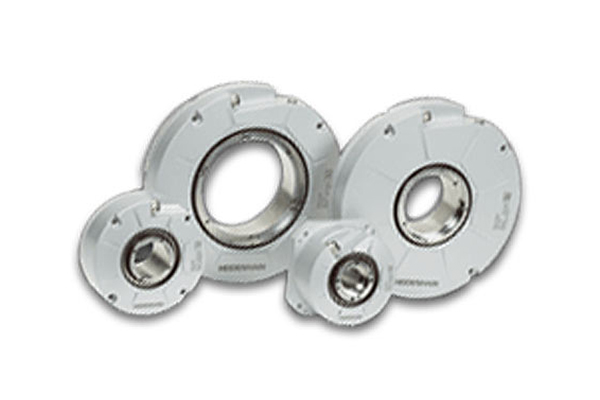

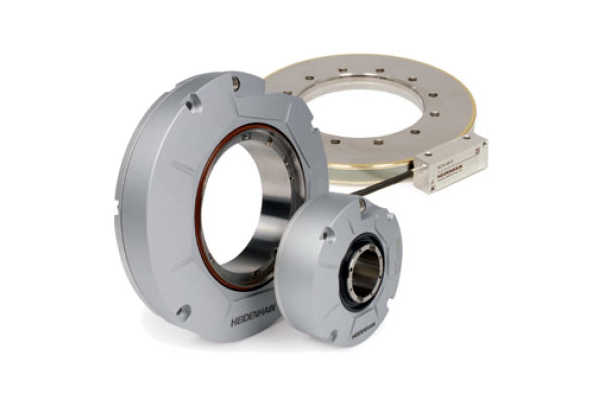

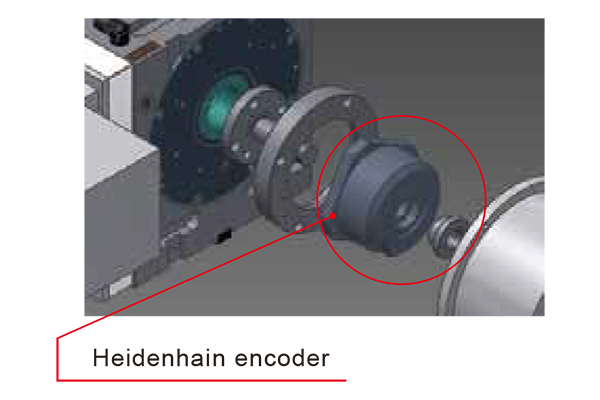

SPECIFICATIONS OF HEIDENHAIN ENCODER

*Recommended option for titling axis of 5 axis.
