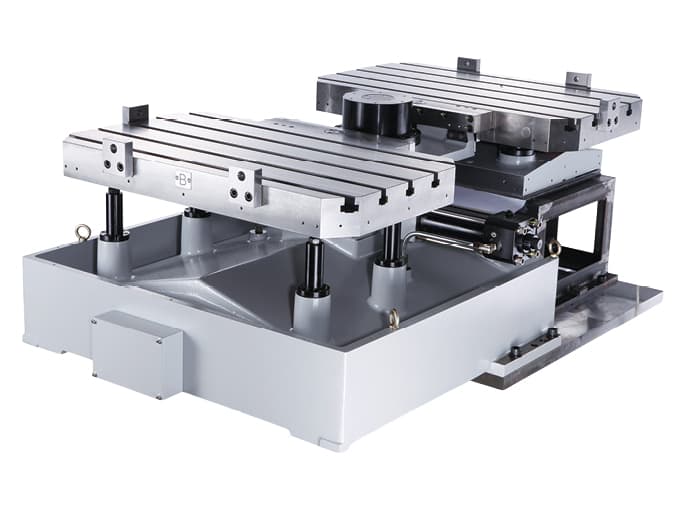

- Automatic Pallet Change System ø850
Automatic Pallet Change System
ø850
CVR-850
Easy Installation: The pallet change device is directly mounted on the base. Easy to install and space saving.
Flexible Production: Available to equip with several tables to meet small lot flexible production requirements.
Great Loading Capacity: Hydraulic drive. Workpiece loading capacity up to 300kg x 2 pcs.
High Repeatability: Employs high precision conical positioning blocks to ensure stability of table and repeatability in ± 0.005mm.

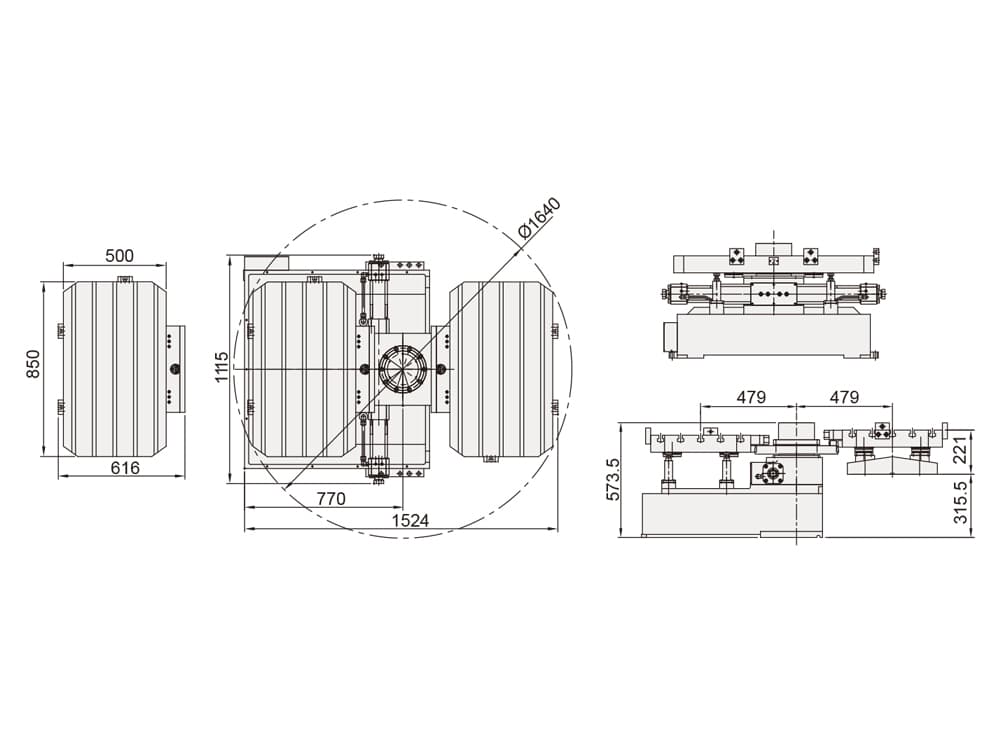

- SPECIFICATIONS
Specifications
| MODEL | Unit | CVR-850 | |
|---|---|---|---|
| Pallet Sizes | mm / inch | 850 x 500 / 33.46 x 19.69 | |
| Number of Pallets | 2 | ||
| Pallet Change Method | 180° Swing | ||
| T-slot Size | mm / inch | 18H8 / 0.71H8 | |
| Drive Method / Pressure | MPa / psi | Hydraulic 6 / 870 | |
| Pallet Clamping Force | N / lbs | 36850 / 8269.14 | |
| Cutting Load Resistant Capacity | N.m / ft. lbs. | 2940 / 2166.78 | |
| Pallet Positioning Method | Taper Cone | ||
| Allowable Loading Capacity | kg / lb | 300 x 2 / 660 x 2 | |
| Allowable Loading Inertia | kg.m2 | 7.5 x 2 | |
| Lifting Force | N / lbs | 35280 / 7916.83 | |
| Weight (N.W.) | Pallet Exchange Mechanism | kg / lb | 550 / 1210 |
| Pallet | kg / lb | 190 x 2 / 418 x 2 | |
| Sub-pallet | kg / lb | 105 / 231 | |
Note:
1. Pallet change time may varied with flow of pump, length and diameter of pipe.
2. Allowable loading inertia means the allowable value at the distance of 450mm between the loading gravity and the APC center.
1. Pallet change time may varied with flow of pump, length and diameter of pipe.
2. Allowable loading inertia means the allowable value at the distance of 450mm between the loading gravity and the APC center.
