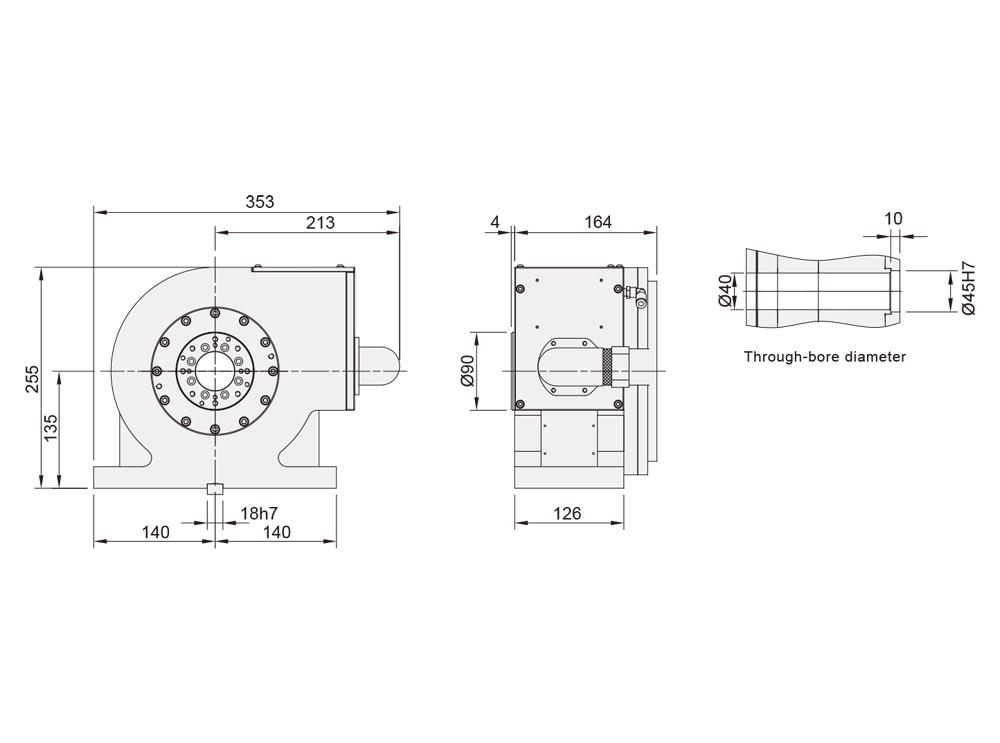

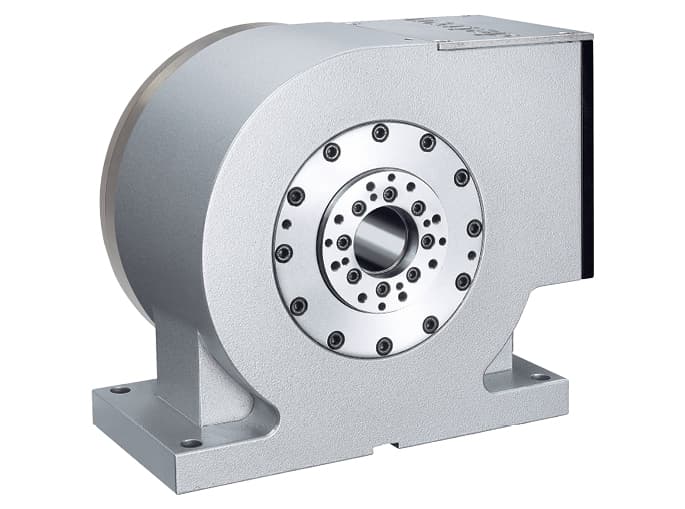

DDM Rotary Table
ø170
DV-170P
Rotation speed exceeds 250 min-1, excellent speed and efficiency for mass production.
Low inertia- no gears or belts drive in direct drive system, resulting in lower inertia and greater acceleration / deceleration.
Equipped with high precision encoder to achieve high precision positioning.
Backlash-free transmission improves workpiece accuracy and surface roughness.
Direct drive features reach zero-wear.
- SPECIFICATIONS
Specifications
| MODEL | Unit | DV-170P | |
|---|---|---|---|
| Worktable Diameter | mm / inch | STD : No table OPT : Ø170 / Ø6.69 |
|
| Center Bore Diameter (Worktable) | mm / inch | OPT : Ø40H7 / Ø1.57H7 | |
| Through-bore Diameter | mm / inch | Ø40 / Ø1.57 | |
| Height of Center (Vertical) | mm / inch | 135 / 5.31 | |
| Width of T-slot | mm / inch | 12H7 / 0.47H7 | |
| Width of Guide Block | mm / inch | 18 / 0.71 | |
| Clamping Method and Pressure | MPa / psi | Pneumatic 0.6 ~ 0.7 / 87 ~ 101.5 | |
| Clamping Torque | N.m / ft. lbs. | 230 / 169.51 | |
| Transmission Method | Direct Drive | ||
| Max. Table Speed | min-1 | 250 | |
| Allowable Loading Capacity | Vertical | kg / lb | 30 / 66 |
| Horizontal | kg / lb | – | |
| Rotary Tailstock Applied | kg / lb | 70 / 154 | |
|
FxL When Table Clamped |
 |
N / lbs. | 12700 / 2849.88 |
 |
N.m / ft. lbs. | 740 / 540.2 | |
 |
N.m / ft. lbs. | 230 / 169.51 | |
| Allowable Cutting Torque | N.m / ft. lbs. | 60 / 44.22 | |
| Allowable Loading Inertia | (W.D2/8) | kg.m2 | 0.11 |
| Resolution | deg. | 0.001 | |
| Indexing Accuracy | sec. | 20 | |
| Repeatability | sec. | 4 | |
| Net Weight (Motor Incl.) | kg / lb | 47 / 104 | |
| Cooling System | Air Cooling | ||
Remark*:
1. Torque motor (Direct Drive motor) can be chosen based on customers' control system.
2. Index accuracy will be different depending on encoder type revised.
3. FxL When table clamped is a reference data, the users should consider proper safety factor or contact detron for details.
