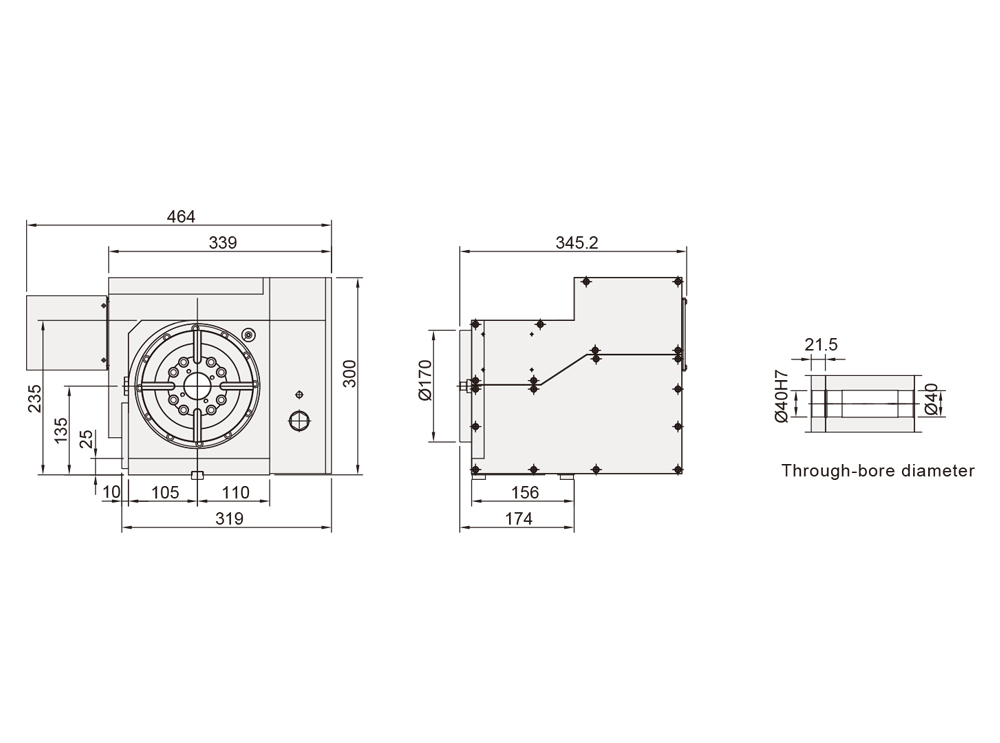

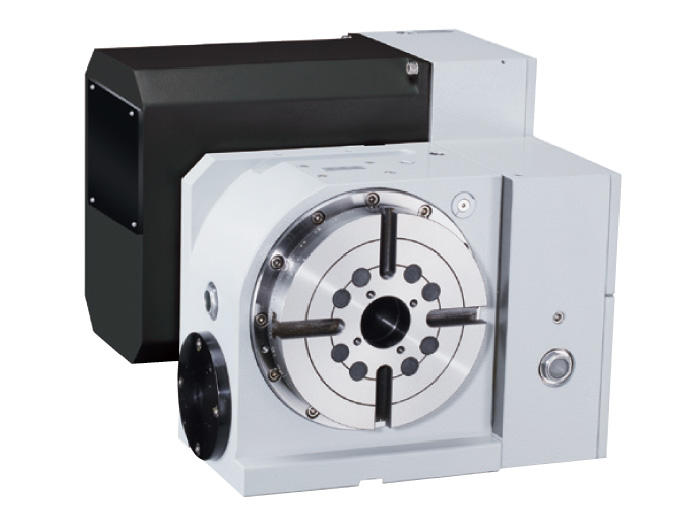

CNC Rotary Table
ø170
GV-170SB
Worktable diameter Ø170, Ø210 , Ø255.
GVA-SB series is new "super multiple brake" mechanism for pneumatic clamp.
Full gear depth transmitted by dual lead worm drive, resulting in higher efficiency and lower backlash.
- SPECIFICATIONS
Specifications
| MODEL | Unit | GV-170SB | |
|---|---|---|---|
| Worktable Diameter | mm / inch | Ø170 / Ø6.69 | |
| Center Bore Diameter | mm / inch | Ø40H7 / Ø1.57H7 | |
| Height of Center (Vertical) | mm / inch | 135 / 5.31 | |
| Width of T-slot | mm / inch | 12H7 / 0.47H7 | |
| Width of Guide Block | mm / inch | 18 / 0.71 | |
| Clamping Method / Pressure | MPa / psi | Super Multi- Pneumatic 0.55 ~ 0.7 / 79.8 ~ 101.5 |
|
| Clamping Torque | N.m / ft. lbs. | 250 / 184.25 | |
| Servo Motor Spec | Refer to Page 77 | ||
| Transmission Ratio | 1 / 90 | ||
| Max. Table Speed / At Specified Servo Motor Speed | min-1 | 44.4 / 4000 | |
| Allowable Loading Inertia | (W.D2/8) | kg.m2 | 0.28 |
| Resolution | deg. | 0.001 | |
| Indexing Accuracy | sec. | 20 | |
| Repeatability | sec. | 6 | |
| Net Weight (Servo Motor Excluded) | kg / lb | 90 / 198 | |
| Allowable Loading Capacity | Vertical | kg / lb | 75 / 165 |
| Rotary Tailstock Applied | kg / lb | 150 / 330 | |
|
FxL When Table Clamped |
 |
N / lbs. | 14000 / 3141.60 |
 |
N.m / ft. lbs. | 1020 / 751.74 | |
 |
N.m / ft. lbs. | 250 / 184.25 | |
| Allowable Cutting Torque |  |
N.m / ft. lbs. | 170 / 125.29 |
Note:
1. Allowable cutting torque at table speed of 1 min-1.
2. FxL When table clamped is a reference data, the users should consider proper safety factor or contact detron for details.
