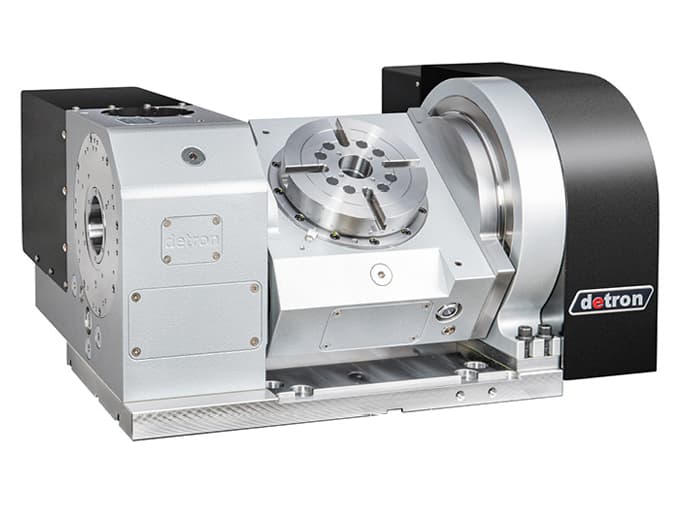

Roller Gear Cam Drive Tilting Rotary Table ø170

Roller Gear Cam Drive Tilting Rotary Table ø170

Roller Gear Cam Drive Tilting Rotary Table
ø170

Name: Roller Gear Cam Drive Tilting Rotary Table ø170
Brand: detron Machine Co., Ltd.
SKU: RCF-170S/H

RCF-170S/H

Worktable diameter Ø170, Ø210, Ø255, Ø320.

Rolling contact reserves high rigidity, high speed and long endurance.

Least drive energy wear-out and more than 80% transmission rate.

Backlash-free from rolling motion achieves high accuracy.

Inquiry

Catalog Download

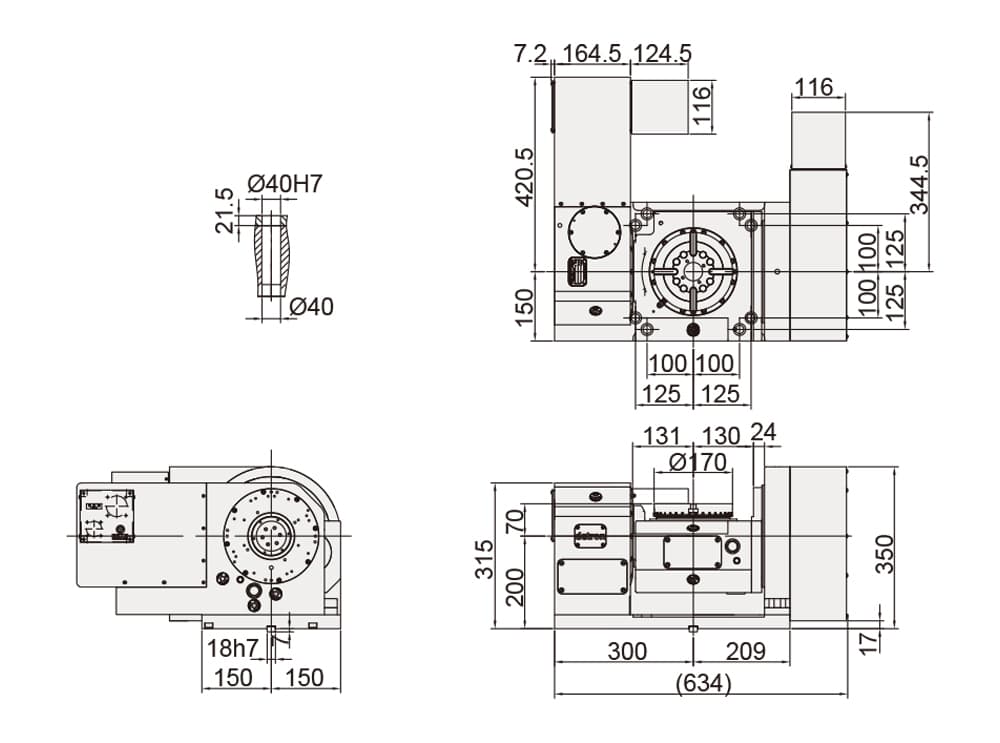

SPECIFICATIONS

Specifications

MODEL		Unit	RCF-170S/H
Worktable Diameter		mm / inch	Ø170 / Ø6.69
Center Bore Diameter		mm / inch	Ø40H7 / Ø1.57H7
Height of Table (Horizontal)		mm / inch	270 / 10.6
Height of Center (Vertical)		mm / inch	200 / 7.87
Width of T-slot		mm / inch	12H7 / 0.47H7
Width of Guide Block		mm / inch	18 / 0.71
Clamping Method / Pressure		MPa / psi	P: 0.55~0.7 / 79.8~101.5 H: 2.5 / 363
Servo Motor Spec			Refer to Page 78
Transmission Ratio			R	T
Transmission Ratio			1 : 60	1 : 90
Max. Table Speed / At Specified Servo Motor Speed		min^-1	50 / 3000	33.3 / 3000
Clamping Torque		N.m / ft. lbs.	300 / 221 600 / 443	400 / 295 700 / 516
Allowable Loading Capacity	In Horizontal	kg / lb	75 / 165
Allowable Loading Capacity	In Tilting (0~90°)	kg / lb	50 / 110
Allowable Unbalancing Work Moment	WxL	N.m / ft. lbs.	40 / 29.5
FxL When Table Clamped	F	N / lbs.	7000 / 1571
	FxL	N.m / ft. lbs.	300 / 221 600 / 443
	FxL	N.m / ft. lbs.	400 / 295 700 / 516
Standard Loading Inertia	(W.D²/8)	kg.m²	0.2
Resolution		deg.	0.001
Indexing Accuracy		sec	20	60
Repeatability		sec	6	8
Tilting Angle Range		deg.	-30 ~ +120
Net Weight (Servo Motor Excluded)		kg / lb	221 / 487
Cam Allowable Torque		N.m / ft. lbs.	280 / 207
Allowable Max. Rotary Joint Quantity		Port	4

Note:
1. R: Rotary Axis T: Tilt Axis
2. FxL When table clamped is a reference data, the users should consider proper safety factor or contact detron for details.
