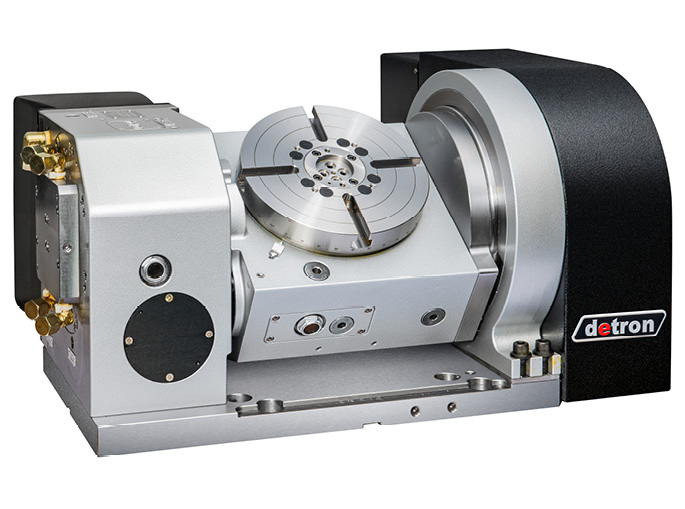

CNC Tilting Rotary Table
ø200
GFA-200ESⅡ/HⅡ
Worktable diameter Ø100, Ø125, Ø170, Ø200.
Exclusive patented dual pneumatic piston braking system.
Enlarged the high precision cross roller bearing.
Transmitted by dual lead worm with high efficiency and full depth gear teeth.

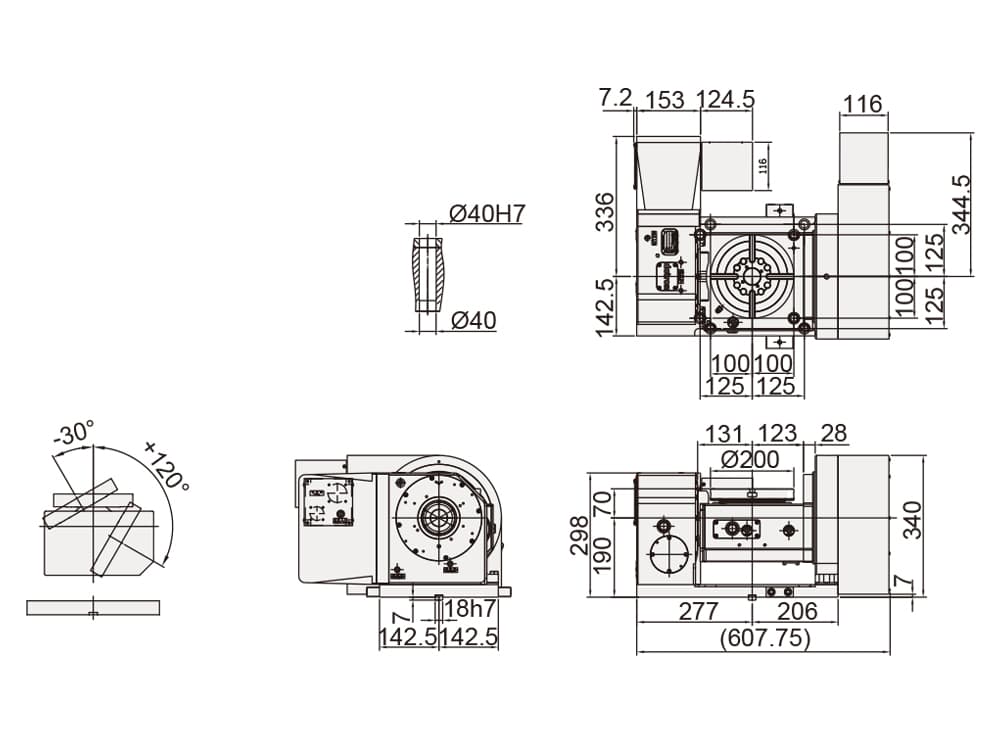

- SPECIFICATIONS
Specifications
| MODEL | Unit | GFA-200ESⅡ/HⅡ | ||
|---|---|---|---|---|
| Worktable Diameter | mm / inch | Ø200 / Ø7.87 | ||
| Center Bore Diameter | mm / inch | Ø40H7 / Ø1.57H7 | ||
| Height of Table (Horizontal) | mm / inch | 260 / 10.24 | ||
| Height of Center (Vertical) | mm / inch | 190 / 7.48 | ||
| Width of T-slot | mm / inch | 12H7 / 0.47H7 | ||
| Width of Guide Block | mm / inch | 18 / 0.71 | ||
| Clamping Method / Pressure | MPa / psi | P: 0.55~0.7 / 79.8~101.5 H: 2.5 / 363 |
||
| Servo Motor Spec | Refer to Page 78 | |||
| Transmission Ratio | R | T | ||
| 1:90 | 1:90 | |||
| Max. Table Speed / At Specified Servo Motor Speed | min-1 | 33.3 / 3000 | 22.2 / 2000 | |
| Clamping Torque | N.m / ft. lbs. | 300 / 221 450 / 332 |
400 / 295 700 / 516 |
|
| Allowable Loading Capacity | In Horizontal |
kg / lb | 75 / 165 | |
In Tilting (0~90°) |
kg / lb | 50 / 110 | ||
| Allowable Unbalancing Work Moment | WxL |
N.m / ft. lbs. | 40 / 29.5 | |
|
FxL When Table Clamped |
F  |
N / lbs. | 7000 / 1570.8 | |
FxL  |
N.m / ft. lbs. | 300 / 221 450 / 332 |
||
FxL  |
N.m / ft. lbs. | 400 / 295 700 / 516 |
||
| Allowable Loading Inertia | (W.D2/8)  |
kg.m2 | 0.28 | |
| Resolution | deg. | 0.001 | ||
| Indexing Accuracy | sec | 20 | 60 | |
| Repeatability (ISO 230-2 / JIS B6192) | sec | 6 | 8 | |
| Repeatability (JIS B6330) | sec | 4 | 4 | |
| Tilting Angle Range | deg. | -30 ~ +120 | ||
| Net Weight (Servo Motor Excluded) | kg / lb | 180 / 396 | ||
| Allowable Cutting Torque | N.m / ft. lbs. | 200 / 147.4 | ||
| Allowable Max. Rotary Joint Quantity | Port | 4 | ||
Note:
1. R: Rotary Axis T: Tilt Axis
2. FxL When table clamped is a reference data, the users should consider proper safety factor or contact detron for details.
1. R: Rotary Axis T: Tilt Axis
2. FxL When table clamped is a reference data, the users should consider proper safety factor or contact detron for details.
