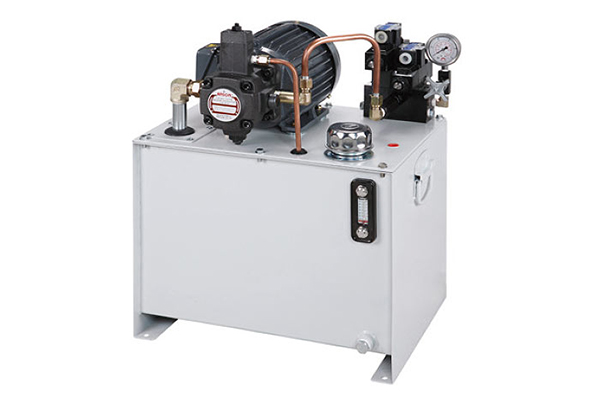

Hydraulic power unit (HTK series)

CHUCK AND OTHER OPTIONS FOR CNC ROTARY TABLE

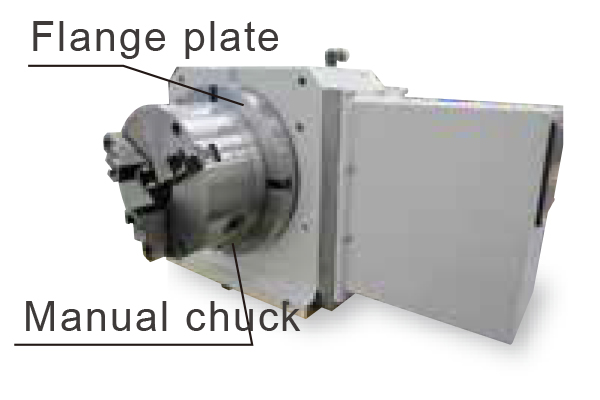

Manual chuck

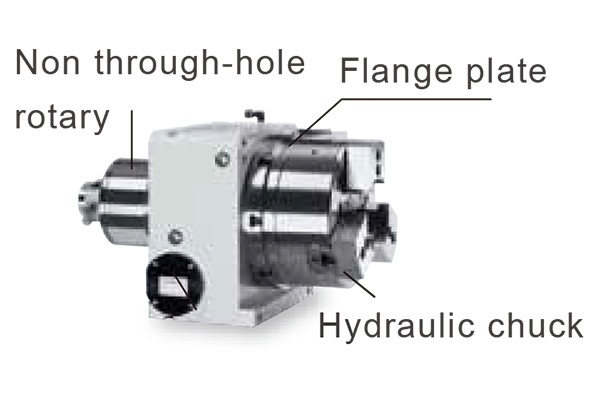

Hydraulic chuck

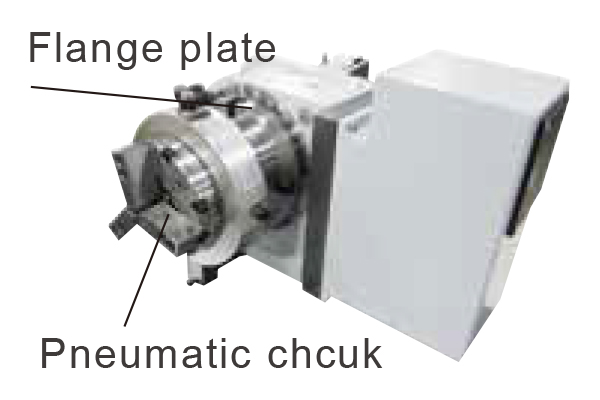

Pneumatic chuck

ROTARY TABLE AND COMPATIBLE CHUCK

MODEL	GXA-125S	GXA-170S	GXA-210S	GXA-255H	GXA-320H	GXA-400H	GXA-500H
MODEL	GXA-125S	RCX-170S/H	RCX-210S/HII	RCX-255H	RCX-320H	RCX-400H	RCX-500H/HL
Manual chuck	SC-4″, SC-5″	SK-6″, SK-7″	SK-7″, SK-8″	SK-8″, SK-9″	SK-10″, SK-12″	SK-10″, SK-12″	SK-12″, SK-16″
Hydraulic chuck		HCK-6″	HCK-6″	HCK-8″	HCK-10″

*Model in red is suggested

GRIPPING RANGE OF 3- JAW CHUCK

unit: mm / inch

MODEL	SC-4	SC-5	SK-6	SK-7	SK-8	SK-9	SK-10	SK-12	SK-16
O.D. range	Ø3 - 90 / Ø0.12 - 3.5	Ø3-110 / Ø0.12-4.33	Ø3-160 / Ø0.12-6.30	Ø8-180 / Ø0.31-7.09	Ø8-190 / Ø0.31-7.48	Ø11-220 / Ø0.43-8.66	Ø12-260 / Ø0.47-10.24	Ø15-300 / Ø0.59-11.81	Ø30-400 / Ø1.18-15.75
I.D range	Ø32-84 / Ø1.26-3.31	Ø35-100 / Ø1.38-3.94	Ø55-150 / Ø2.17-5.91	Ø62-170 / Ø2.44-6.69	Ø68-180 / Ø2.67-7.08	Ø70-210 / Ø2.76-8.27	Ø80-250 / Ø3.15-9.84	Ø90-290 / Ø3.54-11.42	Ø110-380 / Ø4.33-14.96

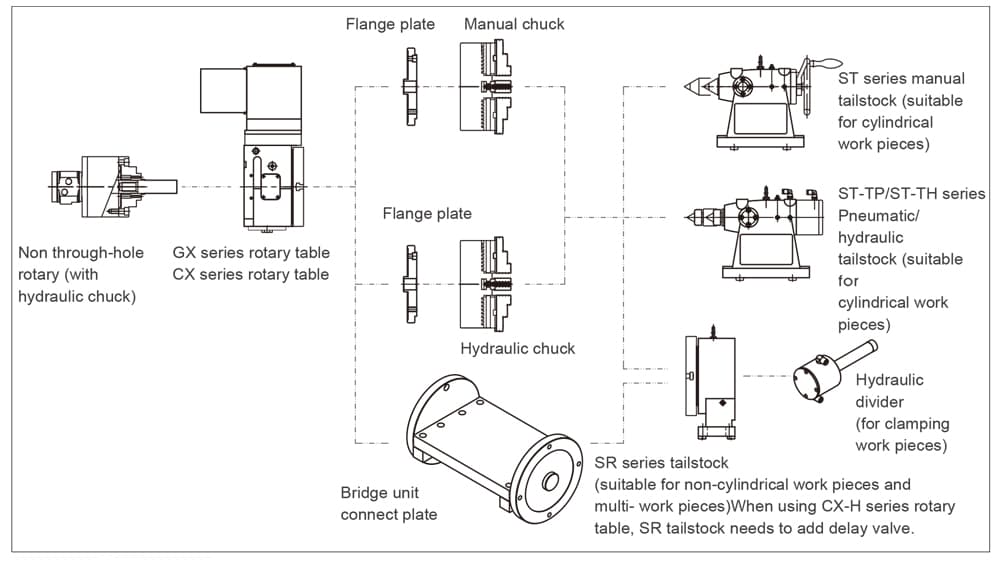

ACCESSORIES CONNECTION DIAGRAM

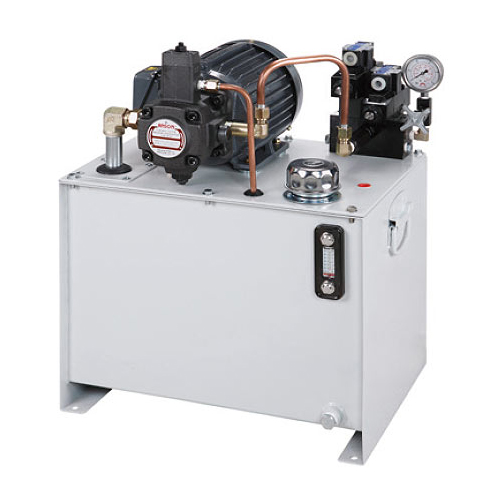

Hydraulic power unit (HTK series)

Applied for GXA-H & CX-H, series rotary tables.
Recommended for application with hydraulic chuck or hydraulic fixture.

ABR-35 air booster unit

Use for GXA-H series
Recommended for application in NC table only or with SR-H hydraulic tailstock. Additional hydraulic unit is suggested for peripheral hydraulic part- holding device.
