- CNC Trunnion Tilting Rotary Table ø650

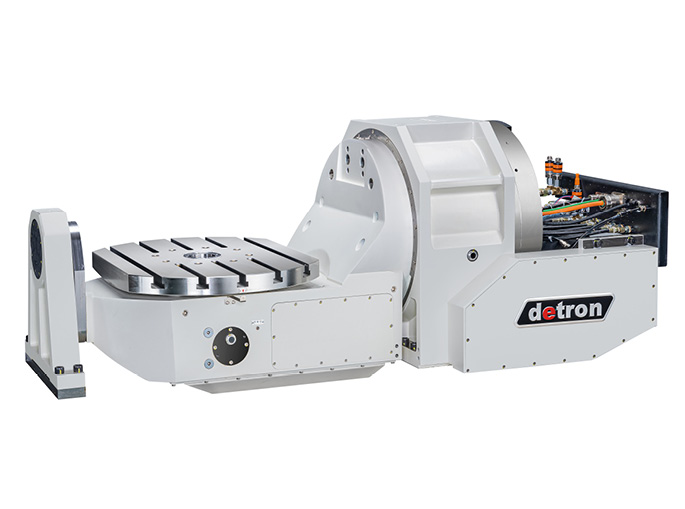

CNC Trunnion Tilting Rotary Table
ø650
GTFA-650EHB
Worktable diameter Ø500, Ø650, Ø720.
The hydraulic brake equipped with radial and axial bearings.
Full gear depth transmitted by dual lead worm drive, resulting in higher efficiency and lower backlash.
Built-in air-booster for appointed models.

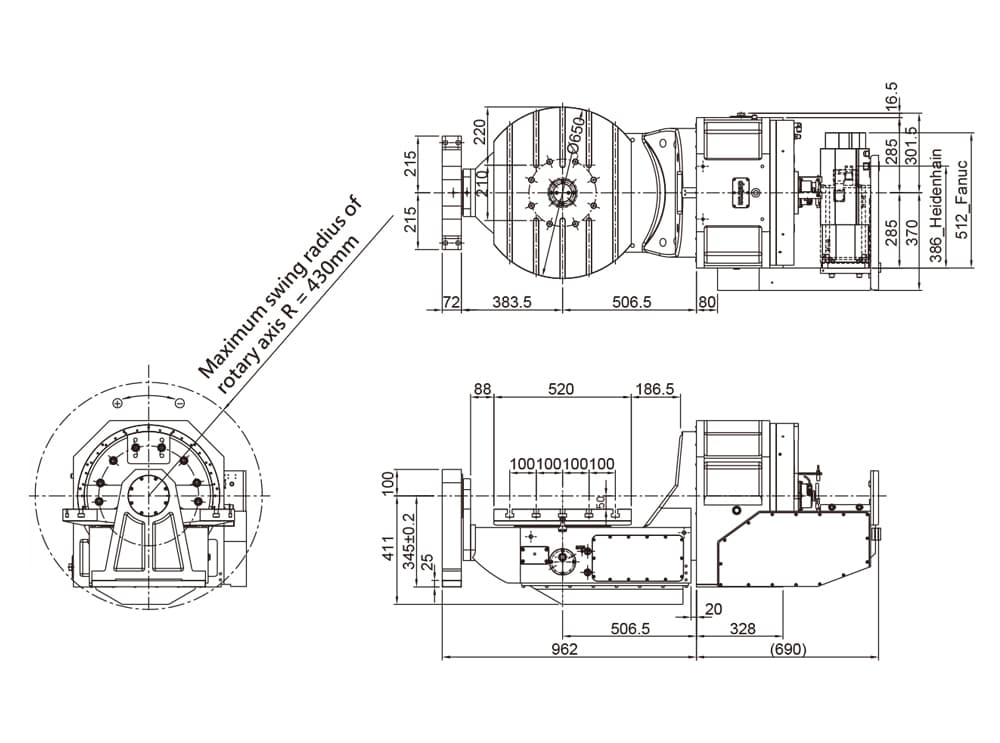

- SPECIFICATIONS
Specifications
| MODEL | Unit | GTFA-650EHB | ||
|---|---|---|---|---|
| Worktable Diameter | mm / inch | Ø650x520W / Ø26x20W | ||
| Center Bore Diameter | mm / inch | Ø70H7 / Ø2.76H7 | ||
| Height of Table (Horizontal) | mm / inch | 295 / 12 | ||
| Height of Center (Vertical) | mm / inch | 345 / 14 | ||
| Width of T-slot | mm / inch | 18H7 / 0.7H7 | ||
| Clamping Method / Pressure | MPa / psi | *H: 4 / 580 | ||
| Servo Motor Spec | Refer to Page 78 | |||
| Transmission Ratio | R | T | ||
| 1 : 72 | 1 : 120 | |||
| Max. Table Speed / At Specified Servo Motor Speed | min-1 | 25 / 1800 | 25 / 3000 | |
| Clamping Torque | N.m / ft. lbs. | 2000 / 1475 | 3400 / 2508 | |
| Allowable Loading Capacity | In Horizontal |
kg / lb | 300 / 660 | |
In Tilting (0~90°) |
kg / lb | 300 / 660 | ||
| Allowable Unbalancing Work Moment | WxL |
N.m / ft. lbs. | 300 / 221 | |
|
FxL When Table Clamped |
F  |
N / lbs. | 30000 / 6744 | |
FxL  |
N.m / ft. lbs. | 2000 / 1475 | ||
FxL  |
N.m / ft. lbs. | 3400 / 2508 | ||
| Allowable Loading Inertia | (W.D2/8)  |
kg.m2 | 9.4 | |
| Resolution | deg. | 0.001 | ||
| Indexing Accuracy | sec | 15 | 60 | |
| Repeatability | sec | 6 | 8 | |
| Tilting Angle Range | deg. | -90 ~ +110 | ||
| Net Weight (Servo Motor Excluded) | kg / lb | 1228 | ||
| Allowable Cuting Torque | N.m / ft. lbs. | 1700 / 1254 | ||
| Allowable Max. Rotary Joint Quantity | Port | 6 | ||
Note:
1. P: Pneumatic H: Hydraulic R: Rotary Axis T: Tilt Axis
2. For the motor model selection of GTFAS125S, please contact us.
3. FxL When table clamped is a reference data, the users should consider proper safety factor or contact detron for details.
1. P: Pneumatic H: Hydraulic R: Rotary Axis T: Tilt Axis
2. For the motor model selection of GTFAS125S, please contact us.
3. FxL When table clamped is a reference data, the users should consider proper safety factor or contact detron for details.
