DDM Trunnion Tilting Rotary Table ø800

DDM Trunnion Tilting Rotary Table
ø800

Name: DDM Trunnion Tilting Rotary Table ø800
Brand: detron Machine Co., Ltd.
SKU: D2TF-800H

D2TF-800H

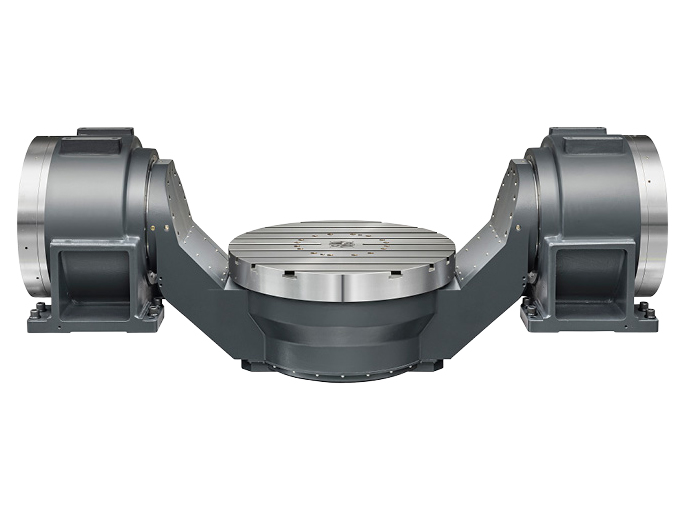

High Speed – The average rotation speed of a normal rotary table is 22.2 RPM. Whereas DDM Rotary Table runs at speeds exceeding 100RPM. Hence this is suitable for high speed turning and cutting applications.

High Precision – Direct drive design is without the normal worm gear transmission. Hence, there is no backlash and mechanical errors. This guarantees very high positional accuracy and repeatability.

Superior Surface Finish - No Backlash, No Abrasion & Low Inertia – No gears or belts in direct drive system ensures superior surface finish.

Inquiry

Catalog Download

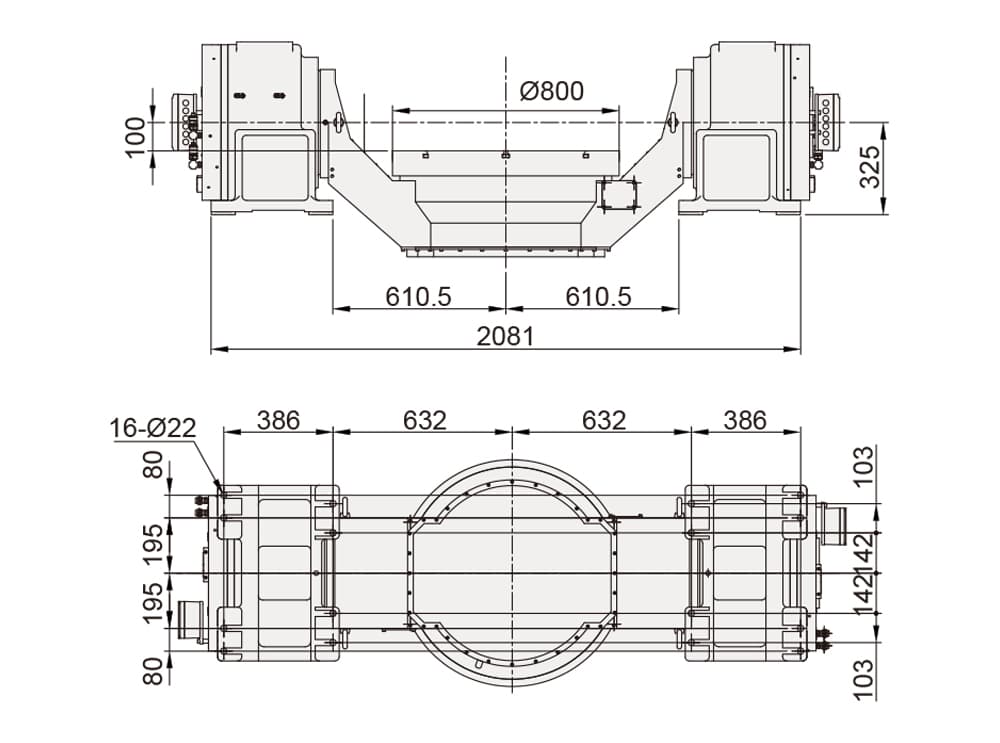

SPECIFICATIONS

Specifications

MODEL		Unit	D2TF-800H
Worktable Diameter		mm / inch	Ø800
Center Bore Diameter		mm / inch	Ø60H7
Height of Table		mm / inch	225
Width of T-slot		mm / inch	14H7
Width of Guide Block		mm / inch	–
Clamping Method / Pressure		MPa / psi	Hydraulic 4 / 580
Max. Table Speed		min^-1	R	T
Max. Table Speed		min^-1	100	50
Clamping Torque		N.m / ft. lbs.	3000	6000
Allowable Loading Capacity	In Horizontal	kg / lb	1000
Allowable Loading Capacity	In Tilting (0~90°)	kg / lb	1000
Allowable Unbalancing Work Moment	WxL	N.m / ft. lbs.	800
FxL When Table Clamped	F	N / lbs	50000
	FxL	N.m / ft. lbs.	3000
	FxL	N.m / ft. lbs.	6000
Allowable Loading Inertia	(W.D²/8)	kg.m²	20
Resolution		deg.	0.001
Indexing Accuracy		sec	10	20
Repeatability		sec	4	4
Tilting Angle Range		deg.	-120 ~ +30
Net Weight (Motor Incl.)		kg / lb	2500
Cooling System			油冷式（與機床共用冷卻）

Remark*:
1. Oil cooling device shall be connected and shared from the basic 3 axis standard machine.
2. DTFA: Rotary table mounted on M/C base. DTFAI: Tilting axis mounted inside of MC column.
3. FxL When table clamped is a reference data, the users should consider proper safety factor or contact detron for details.
