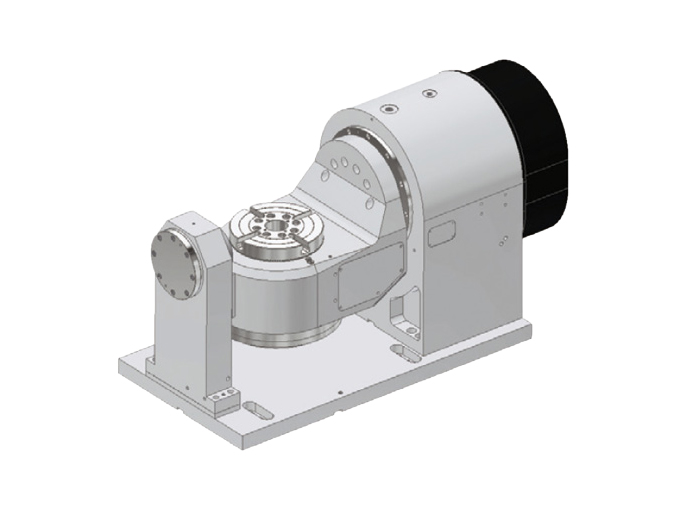

DDM Trunnion Tilting Rotary Table
ø170
DTFE-170P
High Speed – The average rotation speed of a normal rotary table is 22.2 RPM. Whereas DDM Rotary Table runs at speeds exceeding 100RPM. Hence this is suitable for high speed turning and cutting applications.
High Precision – Direct drive design is without the normal worm gear transmission. Hence, there is no backlash and mechanical errors. This guarantees very high positional accuracy and repeatability.
Superior Surface Finish - No Backlash, No Abrasion & Low Inertia – No gears or belts in direct drive system ensures superior surface finish.

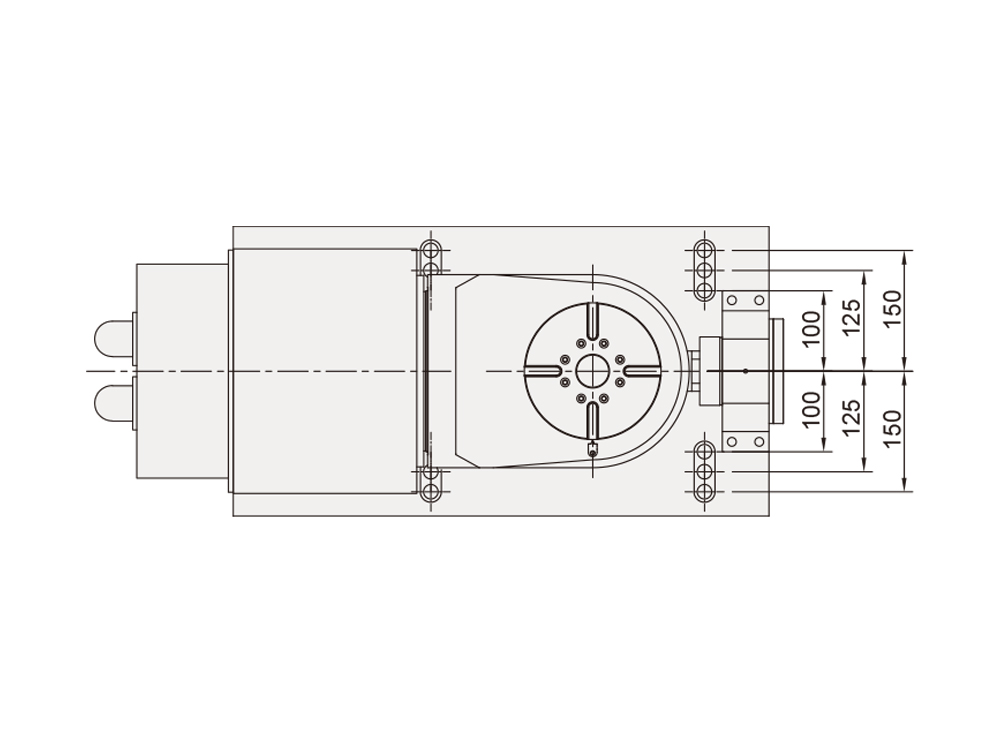

- SPECIFICATIONS
Specifications
| MODEL | Unit | DTFE-170P | ||
|---|---|---|---|---|
| Worktable Diameter | mm / inch | Ø170 / Ø6.69 | ||
| Center Bore Diameter | mm / inch | Ø40H7 / Ø1.57H7 | ||
| Height of Table (Horizontal) | mm / inch | 310 / 12 | ||
| Height of Center (Vertical) | mm / inch | 280 / 11 | ||
| Width of T-slot | mm / inch | 12H7 / 0.47H7 | ||
| Width of Guide Block | mm / inch | 18 / 0.71 | ||
| Clamping Method / Pressure | MPa / psi | Pneumatic 0.6~0.7 / 87~101.5 | ||
| Max. Table Speed | min-1 | R | T | |
| 250 | 100 | |||
| Clamping Torque | N.m / ft. lbs. | 230 / 169.64 | 400 / 295.02 | |
| Allowable Loading Capacity | In Horizontal |
kg / lb | 30 / 66.14 | |
In Tilting (0~90°) |
kg / lb | 30 / 66.14 | ||
| Allowable Unbalancing Work Moment | WxL |
N.m / ft. lbs. | 30 / 14.74 | |
|
FxL When Table Clamped |
F   |
N / lbs | 12700 / 2855.07 | |
FxL   |
N.m / ft. lbs. | 230 / 169.64 | ||
FxL   |
N.m / ft. lbs. | 400 / 295.02 | ||
| Allowable Loading Inertia | (W.D2/8)  |
kg.m2 | 0.12 | |
| Resolution | deg. | 0.001 | ||
| Indexing Accuracy | sec | 20 | 30 | |
| Repeatability | sec | 4 | 4 | |
| Tilting Angle Range | deg. | +30 ~ -120 | ||
| Net Weight (Motor Incl.) | kg / lb | 296 / 652.56 | ||
| Cooling System | Air Cooling | |||
Remark*:
1. Oil cooling device shall be connected and shared from the basic 3 axis standard machine.
2. Air cooling device is not allowed for continuous cutting.
3. FxL When table clamped is a reference data, the users should consider proper safety factor or contact detron for details.
1. Oil cooling device shall be connected and shared from the basic 3 axis standard machine.
2. Air cooling device is not allowed for continuous cutting.
3. FxL When table clamped is a reference data, the users should consider proper safety factor or contact detron for details.
