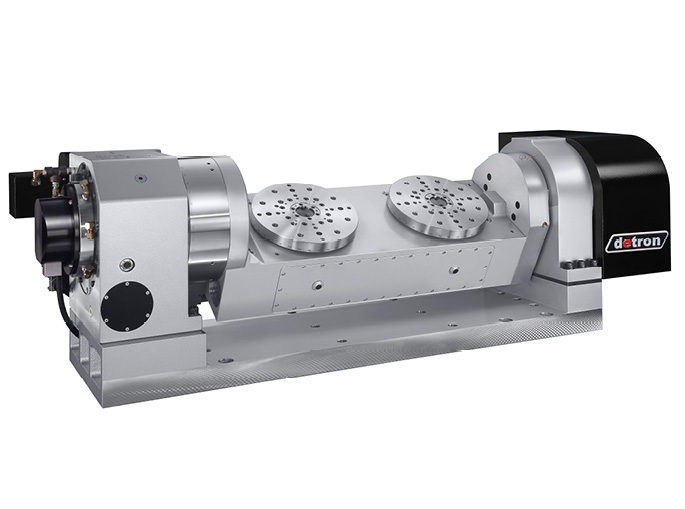

Name: Multi Spindle Tilting Rotary Table ø255
Brand: detron Machine Co., Ltd.
SKU: GTFAE-255H-2W-400

GTFAE-255H-2W-400

Worktable diameter Ø255, Ø320.

Multiple rotary axis allow high volume production and automation integration.

Inquiry

Catalog Download

Video

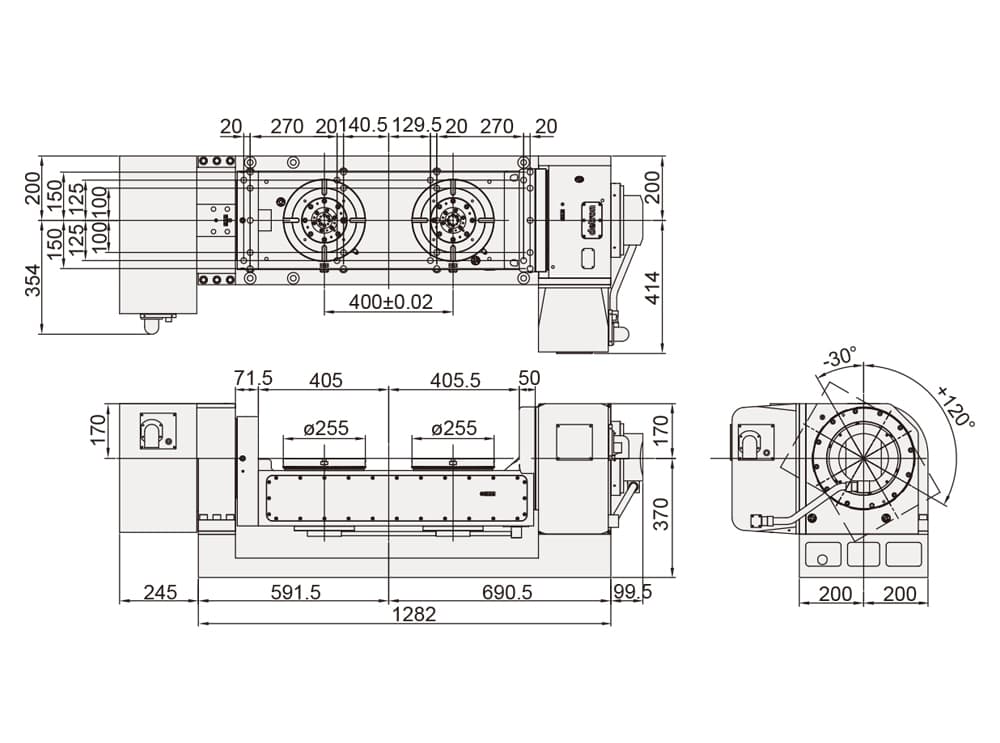

SPECIFICATIONS

Specifications

MODEL		Unit	GTFAE-255H-2W-400
Worktable Diameter		mm / inch	Ø255 / Ø10.04
Center Bore Diameter		mm / inch	Ø50H7 / Ø1.57H7
Pitch of Rotary Axis		mm / inch	400 / 15.75
Max. Work Swing		mm / inch	390 / 15.35
Height of Table (Horizontal)		mm / inch	370 / 14.57
Height of Center (Vertical)		mm / inch	370 / 14.57
Width of T-slot		mm / inch	12H7 / 0.47H7
Drive Pressure / Method		MPa / psi	Hydraulic 5 / 725.0
Drive Pressure / Method		MPa / psi	Hydraulic 5 / 725.0
Servo Motor Spec			Refer to Page 78
Transmission Ratio			R	T
Transmission Ratio			1 / 90	1 / 120
Max. Table Speed / At Specified Servo Motor Speed		min^-1	22.2 / 2000	20 / 2400
Clamping Torque		N.m / ft. lbs.	900 / 663.8	2500 / 1843
Allowable Loading Capacity	In Horizontal	kg / lb	100 / 220
Allowable Loading Capacity	In Tilting (0~90°)	kg / lb	75 / 165
Allowable Unbalancing Work Moment	WxL	N.m / ft. lbs.	130 / 95.8
FxL When Table Clamped	F	N / lbs.	11000 / 2473
	FxL	N.m / ft. lbs.	900 / 663.8
	FxL	N.m / ft. lbs.	2500 / 1843
Allowable Loading Inertia	(W.D²/8)	kg.m²	0.8
Resolution		deg.	0.001
Indexing Accuracy		sec	20	60
Repeatability		sec	6	8
Tilting Angle Range		deg.	-30 ~ +120
Net Weight (Servo Motor Excluded)		kg / lbs	856 / 1887
Allowable Cutting Torque		N.m / ft. lbs.	550 / 405

Note:
1. R: Rotary Axis T: Tilt Axis
2. FxL When table clamped is a reference data, the users should consider proper safety factor or contact detron for details.
