CNC Trunnion Tilting Rotary Table ø500

CNC Trunnion Tilting Rotary Table
ø500

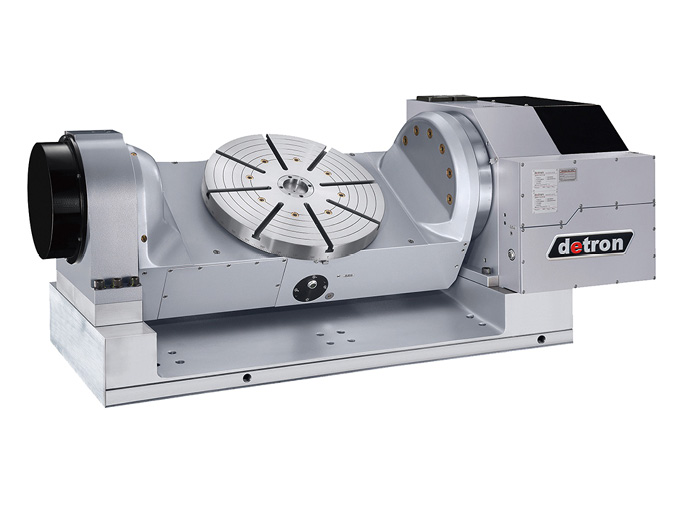

Name: CNC Trunnion Tilting Rotary Table ø500
Brand: detron Machine Co., Ltd.
SKU: GTFAE-500XBL

GTFAE-500XBL

Worktable diameter Ø410, Ø500.

The hydraulic brake equipped with radial and axial bearings.

Full gear depth transmitted by dual lead worm drive, resulting in higher efficiency and lower backlash.

Enlarged swing to allow more working envelope.

Sub- table available as "S" model.

Inquiry

Catalog Download

Video

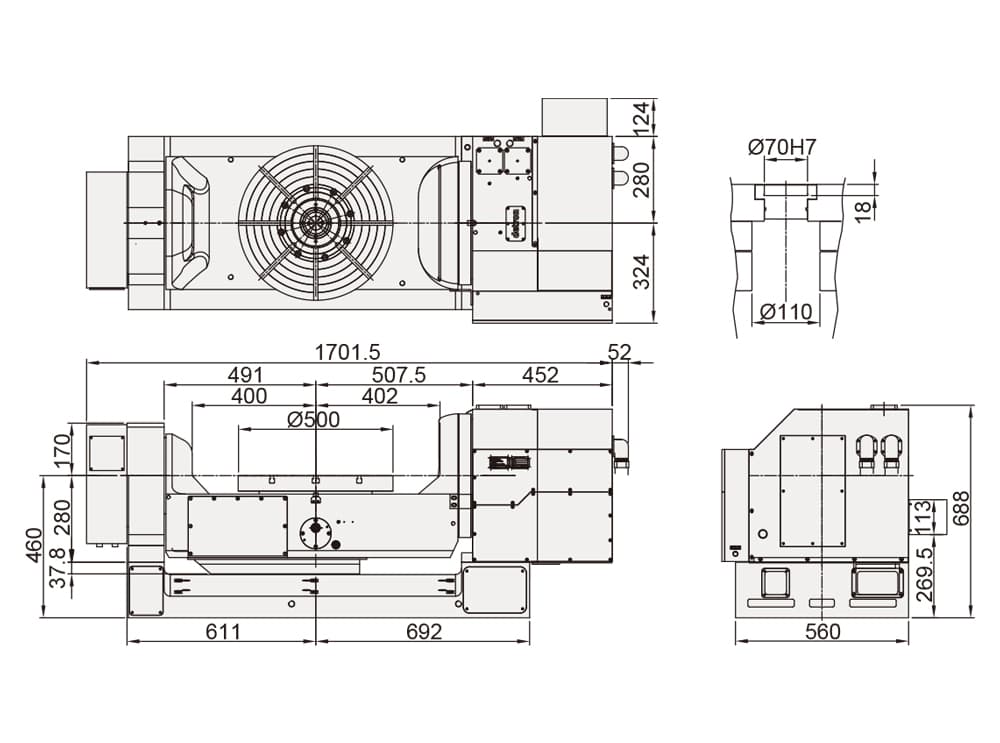

SPECIFICATIONS

Specifications

MODEL		Unit	GTFAE-500XBL
Worktable Diameter		mm / inch	Ø500 / Ø19.69
Center Bore Diameter		mm / inch	Ø70H7 / Ø2.76H7
Height of Table (Horizontal)		mm / inch	460 / 18.11
Height of Center (Vertical)		mm / inch	460 / 18.11
Width of T-slot		mm / inch	14H7 / 0.55H7
Clamping Method / Pressure		MPa / psi	*P: 0.6~0.7 / 87~101.5
Servo Motor Spec			Refer to Page 78
Transmission Ratio			R	T
Transmission Ratio			1 : 120	1 : 180
Max. Table Speed / At Specified Servo Motor Speed		min^-1	16.6 / 2000	11.1 / 2000
Clamping Torque		N.m / ft. lbs.	2500 / 1843.75	3000 / 2212.5
Allowable Loading Capacity	In Horizontal	kg / lb	300 / 660
Allowable Loading Capacity	In Tilting (0~90°)	kg / lb	250 / 550
Allowable Unbalancing Work Moment	WxL	N.m / ft. lbs.	300 / 221.0
FxL When Table Clamped	F	N / lbs.	30000 / 6732.0
	FxL	N.m / ft. lbs.	2500 / 1843.75
	FxL	N.m / ft. lbs.	3000 / 2212.5
Allowable Loading Inertia	(W.D²/8)	kg.m²	9.6
Resolution		deg.	0.001
Indexing Accuracy		sec	15	60
Repeatability		sec	6	8
Tilting Angle Range		deg.	-120 ~ +30
Net Weight (Servo Motor Excluded)		kg / lb	1270 / 2800
Allowable Cuting Torque		N.m / ft. lbs.	1700 / 1241
Allowable Max. Rotary Joint Quantity		Port	6

Note:
1. P: Pneumatic H: Hydraulic R: Rotary Axis T: Tilt Axis
2. FxL When table clamped is a reference data, the users should consider proper safety factor or contact detron for details.
