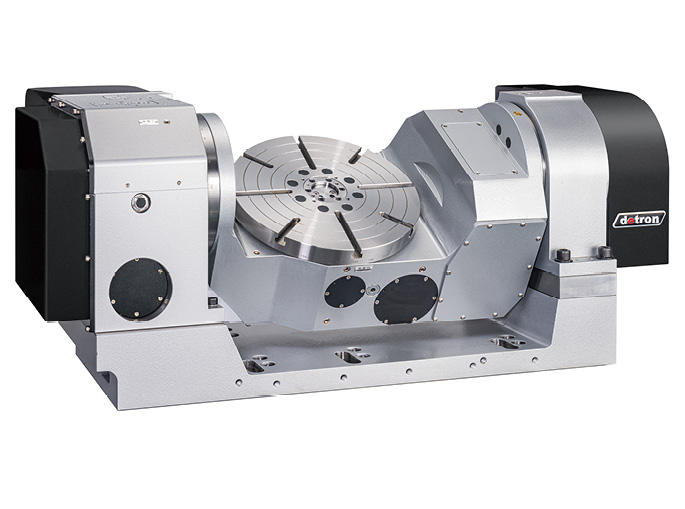

Roller Gear Cam Drive Tilting Rotary Table
ø350
RCTFE-350H
Worktable diameter Ø260, Ø350.
Rolling contact reserves high rigidity, high speed and long endurance.
Least drive energy wear-out and more than 80% transmission rate.
Backlash-free from rolling motion achieves high accuracy.

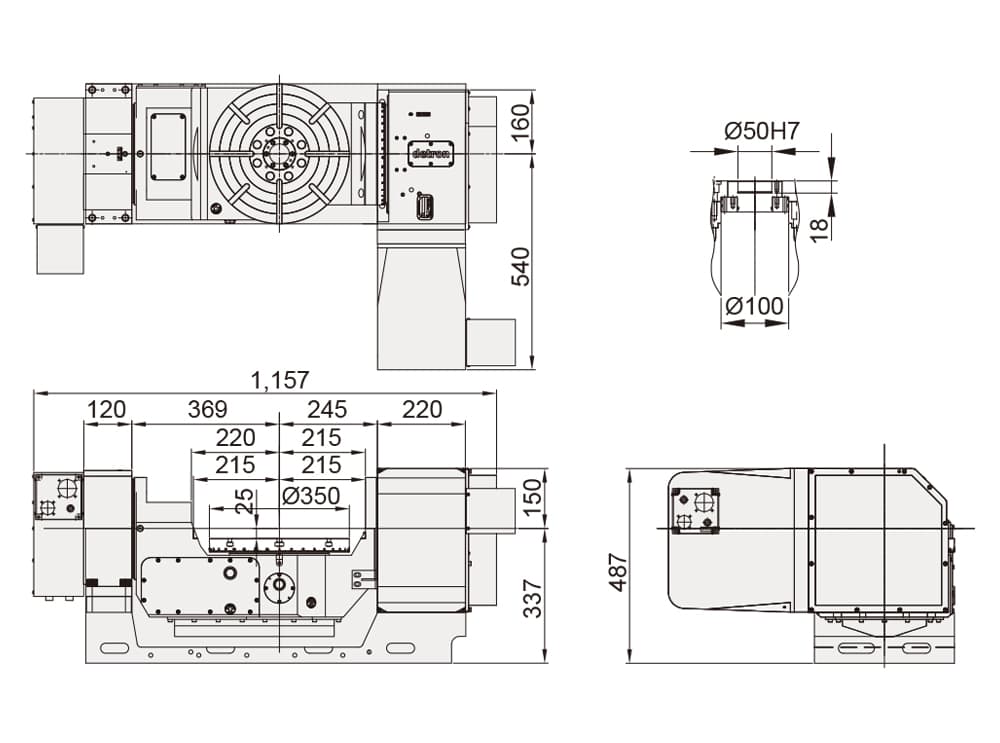

- SPECIFICATIONS
Specifications
| MODEL | Unit | RCTFE-350H | ||
|---|---|---|---|---|
| Worktable Diameter | mm / inch | Ø350 / Ø13.78 | ||
| Center Bore Diameter | mm / inch | Ø50H7 / Ø1.968H7 | ||
| Height of Table (Horizontal) | mm / inch | 312 / 12.29 | ||
| Height of Center (Vertical) | mm / inch | 337 / 13.27 | ||
| Width of T-slot | mm / inch | 12H7 / 0.47H7 | ||
| Servo Motor Spec | Refer to Page 78 | |||
| Clamping Method / Pressure | R | T | ||
| MPa / psi | Hydraulic 5 | |||
| Transmission Ratio | R | T | ||
| 1 : 60 | 1 : 72 | |||
| Max. Table Speed / At Specified Servo Motor Speed | min-1 | 50 / 3000 | 25 / 2000 | |
| Clamping Torque | N.m / ft. lbs. | 700 / 516 | 1800 / 1328 | |
| Allowable Loading Capacity | In Horizontal |
kg / lb | 200 / 441 | |
In Tilting (0~90°) |
kg / lb | 100 / 220 | ||
| Allowable Unbalancing Work Moment | WxL |
N.m / ft. lbs. | 100 / 74 | |
|
FxL When Table Clamped |
F  |
N / lbs. | 20000 / 4496 | |
FxL  |
N.m / ft. lbs. | 700 / 516 | ||
FxL  |
N.m / ft. lbs. | 1800 / 1328 | ||
| Standard Loading Inertia | (W.D2/8)  |
kg.m2 | 2.6 | |
| Resolution | deg. | 0.001 | ||
| Indexing Accuracy | sec | 20 | 60 | |
| Repeatability | sec | 6 | 8 | |
| Tilting Angle Range | deg. | -120 ~ +30 | ||
| Net Weight (Servo Motor Excluded) | kg / lb | 556 / 1226 | ||
| Cam Allowable Torque | N.m / ft. lbs. | 800 / 590 | ||
| Allowable Max. Rotary Joint Quantity | Port | 6 | ||
Note:
1. R: Rotary Axis T: Tilt Axis
2. FxL When table clamped is a reference data, the users should consider proper safety factor or contact detron for details.
1. R: Rotary Axis T: Tilt Axis
2. FxL When table clamped is a reference data, the users should consider proper safety factor or contact detron for details.
